Big Size Working Table CNC Router For Modular Cabinet Wardrobe HK30L
Nowadays, more and more people request full-house modular cabinets, The height of these wardrobes can reach directly to the roof, so it need a big machine to process those panel, like the Egger panel's size is 2800*2070mm, so it will need a big machine for processing those panel. HK30L will be the right machine for this function.
Features
1. Big working table woodworking CNC for the big artificial board.
2. Moving bridge nesting table, belongs to economic and simple mechanical design.
3. Machine is for small quantity and multi-style processing.
4. Direct and fast processing on big boards, there is no need to cut into pieces first.
6. It takes a small area because the working table doesn't move, the tools move up and down, forward and back.

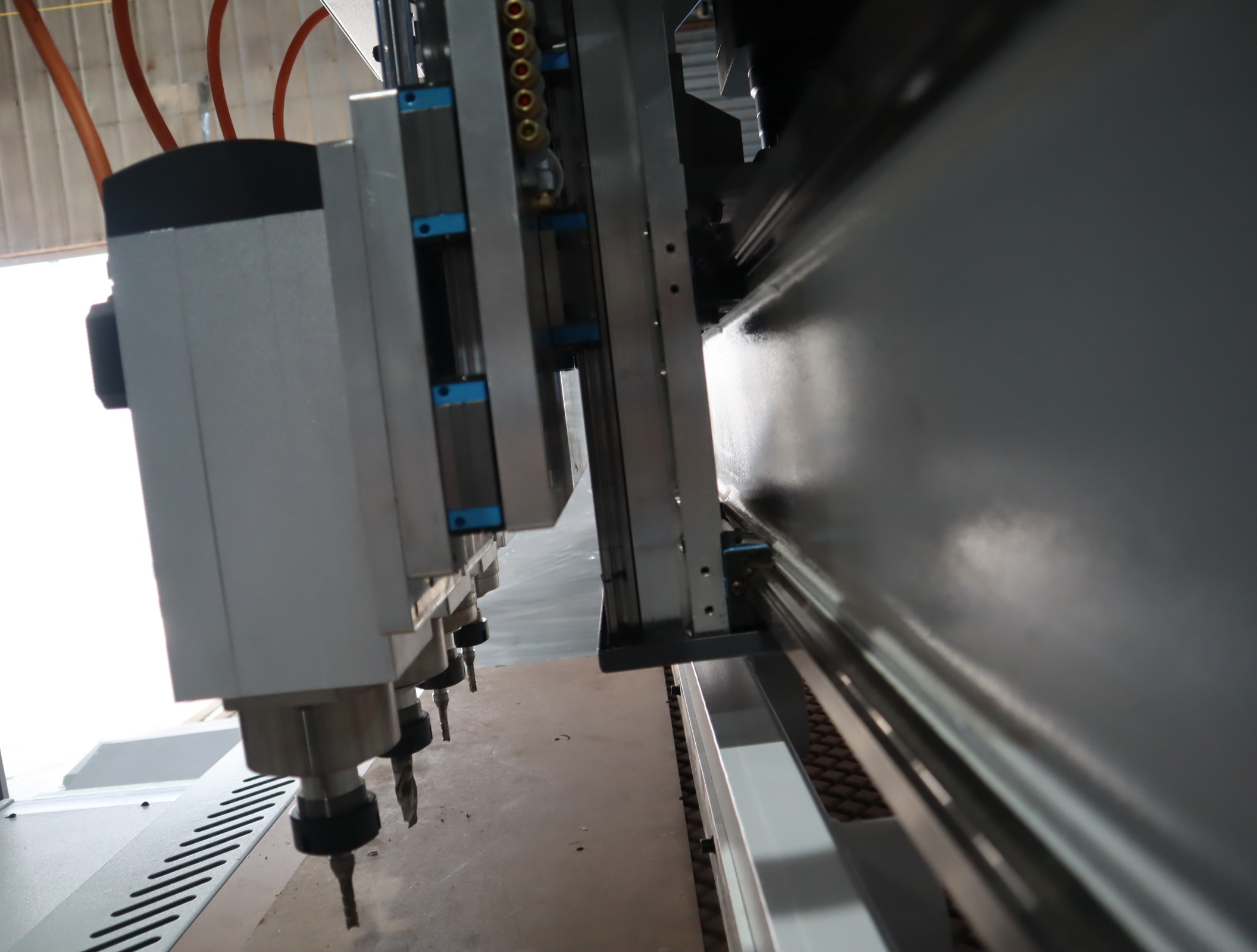

7. Taiwan GSM air cooling spindle with high frequency, 6KW power, ISO-30
8. Centralized automatic lubrication system.
9. Automatic backlash preloading mechanism.
10. Refrigeration and air conditioning electric control box.
11. LNC control system

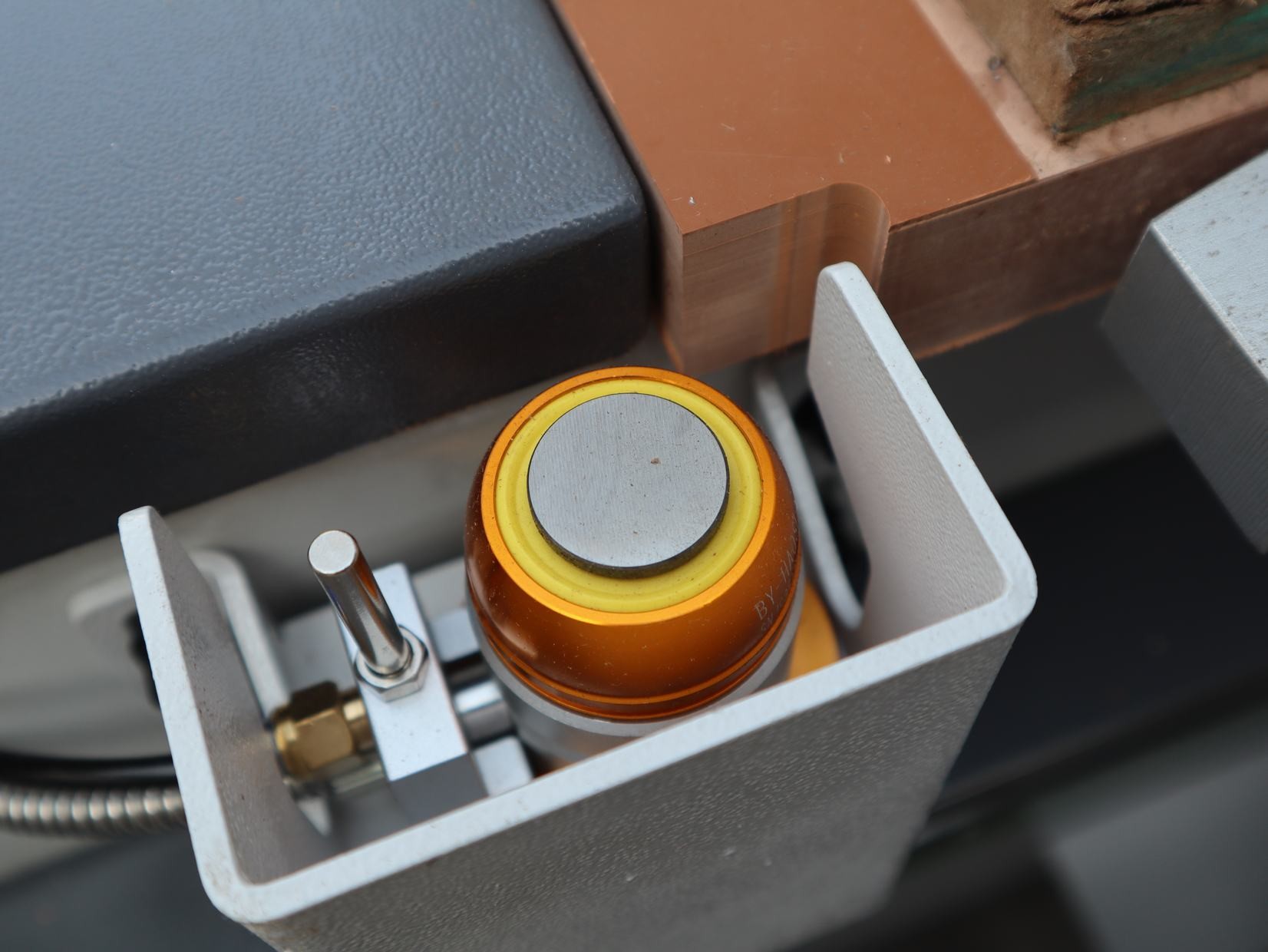

12. Tool automatic compensation system
13. Centralized dust collection control system
14. Industry categories: furniture industry, advertising engraving, yacht and ship, stationery gifts, etc.
15. Processing materials: artificial board, plexiglass, engineering plastics, thermoplastic material, etc.
Base information
| Model: | HK30L | Total Power: | 38 KW |
| Overall Size: | 4555*4280*3150mm | Input Voltage: | 3P 380V Or Customize |
| Max. Processing Size: | 1500*4000*50mm | Feeding Speed: | 12-25m/min |
| Spindle: | 6KW * 3 | Total Weight: | 2200 KG |
More detail about this machine
More video to show the machines, Please see the following link
About our company
One-stop solution for interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
